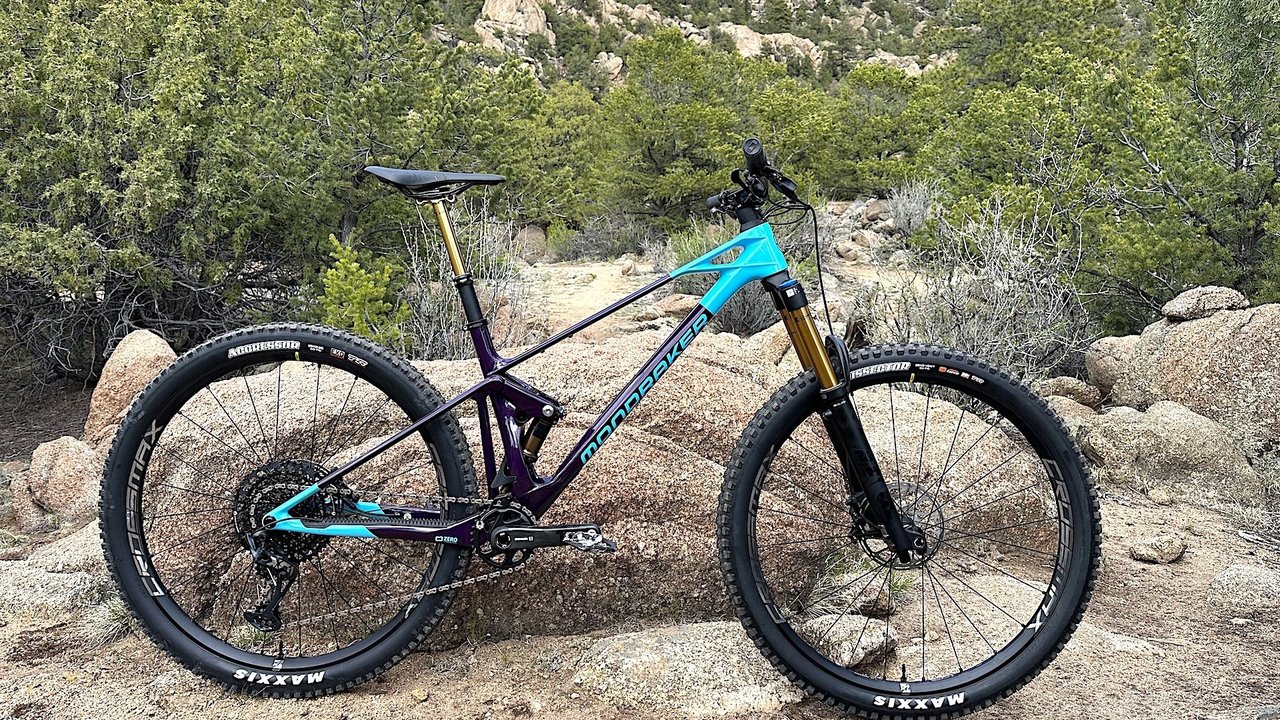

MONDRAKER RAZE CARBON RR - LARGE

Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm Rear shock: Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Shock settings: Light compression, light rebound, air volume spacer 0.6 Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing Stem: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore Handlebar: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore Grips: ONOFF Desert, 1lock-on, 135mm Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm Saddle: Fizik Antares R7 Front brake: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Rear brake: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Brake lever: Sram G2 RS, SwingLink, tool-free reach adjust Rims: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes Spokes: 24 straight-pull double butted spokes Front hub: Infinity hub, Boost 15x110mm, IS 6 bolts Rear hub: Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead Crankset: Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm Rings: 32T, CNC-machined alloy, X-SYNC 2 Bottom bracket: Sram DUB BSA, sealed bearings, 73mm Chain: Sram GX Eagle, 12s, Powerlock Rear derrailleur: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 Shift levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1 Casette: Sram XG-1275, 10-52T, 12s Derailleur hanger: Sram UDH Weight: 13,1 kg
